Limited Chest - Pneumothorax



Sonographic signs of pneumothorax (1,2)

  • B-Mode - Loss of pleural sliding

  • B-Mode - Presence of a lung point sign

  • B-Mode - Absence of B-lines

  • M-Mode - Presence of a Barcode sign (a.k.a. stratosphere sign)



Potential False Positives (3-7)

  • Main Stem Intubation

  • Lung bullae, contusions, adhesions

  • Severe COPD

  • Pleurodesis

  • Pneumonectomy



Literature Review by JUSTIN YAWORSKY

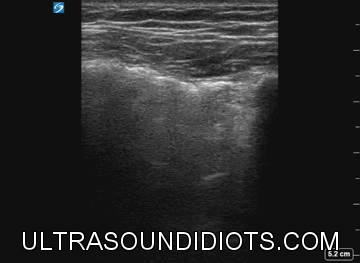

NORMAL VS PTX



LUNG POINT





NORMAL PLEURAL SLIDE VS PNEUMOTHORAX



References

  1. Volpicelli G, Elbarbary M, Blaivas M, Lichtenstein DA, Mathis G, Kirkpatrick AW, et al. International Liaison Committee on Lung Ultrasound (ILC-LUS) for the International Consensus Conference on Lung Ultrasound (ICC-LUS). International evidence-based recommendations for point-of-care lung ultrasound. Intensive Care Med. 2012;38:577–91. doi: 10.1007/s00134-012-2513-4.

  2. Gurung P, Doelken P. Chapter 7. Thoracic Ultrasound. In: Carmody KA, Moore CL, Feller-Kopman D. eds. Handbook of Critical Care and Emergency Ultrasound. New York, NY: McGraw-Hill; 2011.

  3. Bahner D, Blaivas M, Cohen HL, et al. AIUM practice guideline for the performance of the focused assessment with sonography for trauma (FAST) examination. J Ultrasound Med Off, J Am Inst Ultrasound Med. 2008;27(2):313–8.

  4. Volpicelli G, Elbarbary M, Blaivas M, Lichtenstein DA, Mathis G, Kirkpatrick AW, et al. International Liaison Committee on Lung Ultrasound (ILC-LUS) for the International Consensus Conference on Lung Ultrasound (ICC-LUS). International evidence-based recommendations for point-of-care lung ultrasound. Intensive Care Med. 2012;38:577–91. doi: 10.1007/s00134-012-2513-4.

  5. Bahner D, Blaivas M, Cohen HL, et al. AIUM practice guideline for the performance of the focused assessment with sonography for trauma (FAST) examination. J Ultrasound Med Off, J Am Inst Ultrasound Med. 2008;27(2):313–8.

  6. Gurung P, Doelken P. Chapter 7. Thoracic Ultrasound. In: Carmody KA, Moore CL, Feller-Kopman D. eds. Handbook of Critical Care and Emergency Ultrasound. New York, NY: McGraw-Hill; 2011.

  7. Sperandeo M, Varriale A, Sperandeo G, et al. Characterization of the normal pulmonary surface and pneumonectomy space by reflected ultrasound. Journal of Ultrasound. 2011;14(1):22-27. doi:10.1016/j.jus.2011.01.004.
