PULMONARY EMBOLISM and associated sonographic Findings

Rough Draft

Figure 1a

MASSIVE PE ARREST, RV DILATION AND DYSFUNCTION

Figure 1b

Figure 1c

MASSIVE PE ARREST

RV: RV DILATION AND SEPTAL DEVIATION

Figure 1 d

Figure 1e

MASSIVE PE ARREST, DILATED IVC AND HEPATIC VEIN

IVC LONG, NORMAL

IVC LONG, NORMAL

Additional CASES

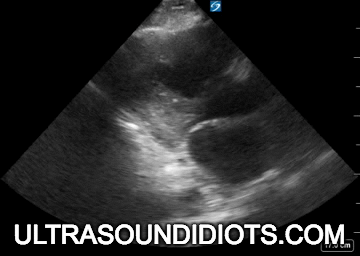

PSA, RV Dilation w Septal Deviation

PSA, RV Dilation w Septal Deviation

AP4, RV > LV, RV apical Blunting, Septal Deviation

AP4, RV > LV, RV apical Blunting, Septal Deviation

AP4, Tricuspid Regurg

AP4, Tricuspid Regurg

PLA, Dilated RVOT w RV Apical Blunting

PLA, Dilated RVOT w RV Apical Blunting

Clips/Images Link

Pulmonary Embolism Image Archive

SOURCES
